Materials
- Everlast Cellular
- Wood
- Vinyl
Function
Enclosure
Pool
Pet
DecorativeChestnut Hill Panel - PVC
Heights:
3’, 3 1/2’, 4’, 5’
Components:
Picket Size : 13/8” square
Picket Spacing : 21/4”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Chestnut Hill Radius - PVC
Heights:
3’, 3 1/2’, 4’, 5’
Components:
Picket Size : 1 3/8” square
Picket Spacing : 2”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Chestnut Hill Drop Transition - PVC
Heights:
3’, 3 1/2’, 4’, 5’
Components:
Picket Size : 13/8” square
Picket Spacing : 2”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Chestnut Hill Sloped Transition - PVC
Heights:
3’, 3 1/2’, 4’, 5’
Components:
Picket Size : 13/8” square
Picket Spacing : 2”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Scalloped Chestnut Hill - PVC
Heights:
3’, 3 1/2’, 4’, 5’
Components:
Picket Size : 13/8” Square
Picket Spacing : 2 1/4”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Staggered Chestnut Hill - PVC
Heights:
3’, 3 1/2’, 4’, 5’
Components:
Picket Size : 1 3/8” Square
Picket Spacing : 1 1/2”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Chestnut Hill - Cedar
Heights: 3’, 4’, 5’, 6’
Components: 1 1/2” x 1 1/2” square cedar spindles, with 1 5/8” spacing
Dressing: Top fascias 1” x 4”, routed edges front and back.
Bottom fascia 1” x 6” construction.
Construction: Square mortised on rear side of fence with 2” x 4” top and
bottom–routed.
Scalloped Chestnut Hill - Cedar
Heights:
3’, 4’, 5’, 6’
Components:
1 1/2” x 1 1/2” square cedar spindles, with 1 5/8” spacing.
Scalloped is approximately 4” in depth.
Dressing:
Middle fascias 1” x 4”, routed edges front and back. Bottom fascia
1” x 6” construction.
Construction:
Square mortise on rear side of fence with 2” x 4” top and
bottom–routed.

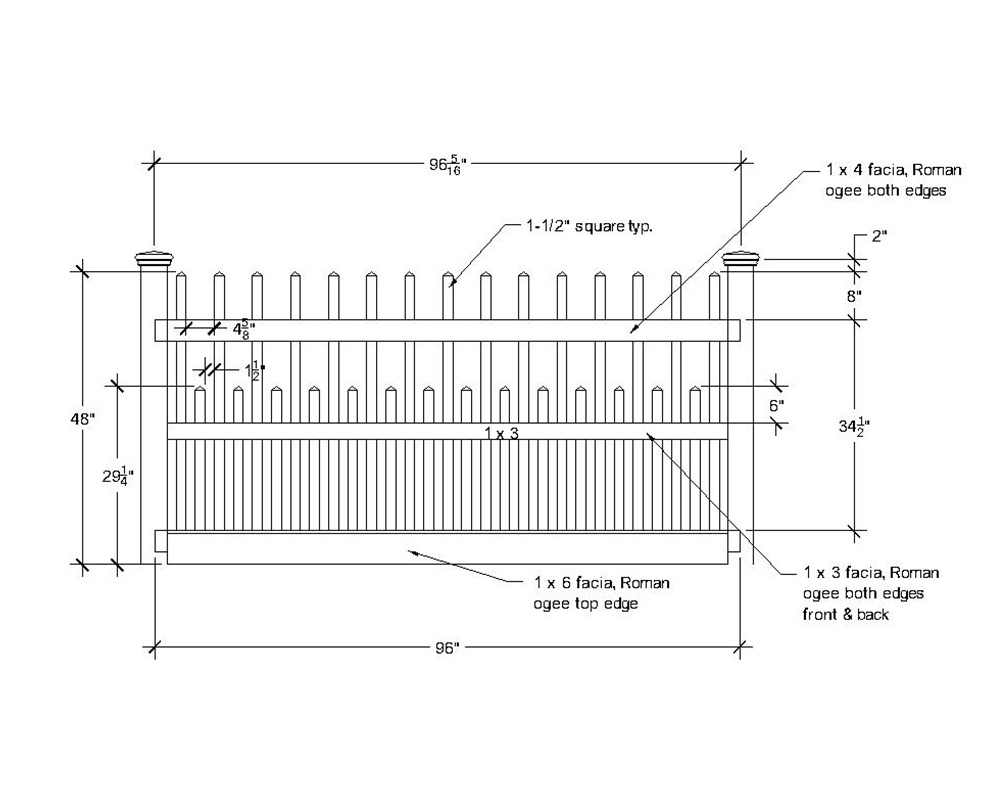

Staggered Chestnut Hill - Cedar
Heights:
3’, 4’, 5’, 6’
Components:
1 1/2” x 1 1/2” square cedar spindles, alternating pattern with
1 5/8” spacing
Dressing:
Middle fascias 1” x 3”, Top fascias 1” x 4” routed edges front & back.
Bottom fascia 1” x 6”–same look front & back on base model.
Construction:
Square mortised – rear side W/ 2” x 4” top & bottom–routed.
Opt. Spacing:
1”–1 5/8”–2”–3”
